Multiple Sclerosis with a Tour(time-lapse movies), Chronix Progressive

Longitudinal magnetic resonance study: a year in the life of a patient with the chronic progressive form of the disease. These data were assembled using Superpose, a method of image registration.

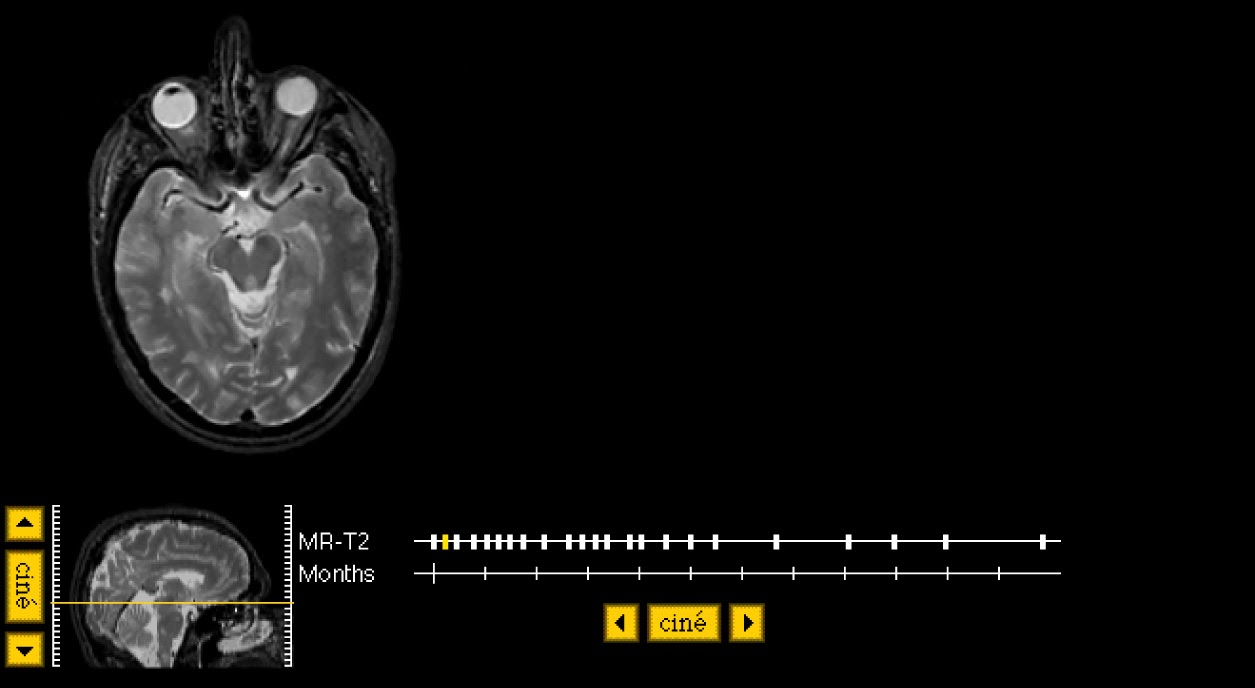

This is a tour of the lesions of multiple sclerosis. Look at the "temporal" movie (time-cine) to see any changes occurring during one year's time. Look at the "spatial" movie (choose "cine", next to the sagittal image) to see the whole brain. There are a few small regions of high signal in temporal white matter, but, at this level, the image is mostly normal. On our next stop, we will see a larger lesion.


Here are a few sample "time-lapse" images(MPEGs) showing MS lesion evolution over one year's time.

supraventricular













supra-thalamic









thalamus





midbrain



Tour1

Look at the large round white spot in the right frontal region. This is a relatively new lesion, and you can see how it enlarges very rapidly over the next weeks. Look at the timeline cine. With time, the lesion enlarges, there is a "halo" of white (high) signal which surrounds the lesion. This probably represents the edema which forms in reaction to the acute damage. At the end of the movie, you can see that the lesion has nearly disappeared, with another lesions appearing.





Tour2

Here are a few small lesions in the lower pons. On this tour, we will review the morphology and location of smaller lesions. First, look at this slice with the timeline movie, or "cine". Notice the large variety of lesion sizes, ranging from a tiny spot in the left lateral frontal, to the huge lesion in the right occipital.




Superpose is a set of software tools for analysis of medical images. Its major purpose is to permit the precise comparison of image datasets from different sources and from different time points. Images from a variety of modalities, including MR, CT, SPECT, and PET, can be precisely compared with each other. With Superpose, volume datasets are processed automatically to yield images which are corrected for differences in pixel size and patient orientation. This allows, for example, precise comparison of brain functional images with underlying structure. It also permits accurate comparison of datasets gathered in a time sequence.

The superpositioning procedure is entirely retrospective. It does not require fiducial markers or special patient positioning. The processing of two typical datasets requires, on average, less than five minutes to complete.

The superposition algorithm operates on surfaces derived from multi-slice or volume datasets.

Here is an example of the pair of surfaces. A surface is derived from a set of contours which outlines the edge of a volume on a series of planar images. Contours are generated by an edge detection algorithm based on a user chosen pixel threshold. This threshold is varied under mouse control until a suitable edge is determined. Contours in all subsequent slices are automatically calculated based on parameters of the first. The corresponding surface consists of a set of triangles spanning neighboring pairs of contours.

Two surfaces are superposed by finding the rigid body transformation carrying one surface into the other which minimizes the volume between them. The transformation is specified by six parameters: three translational and three orientational. The transformation which minimizes the volume contained between the two surfaces is taken to be the transformation relating the two underlying image volumes.
